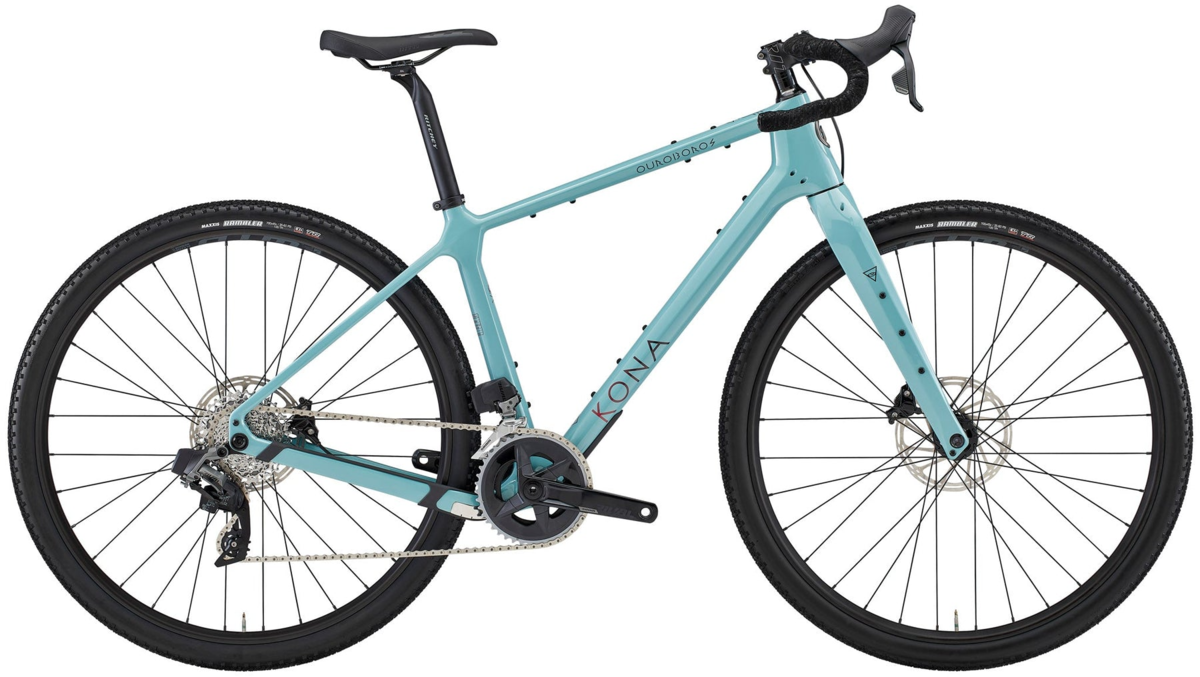

Kona Ouroboros CR/DL
$3,499.00
Details
An absolutely stunning gravel bike for those who seek a more traditional look and feel. This creation prioritizes lightweight features and adheres to the sacred and long-established characteristics of a drop bar bike. We’ve thoughtfully spec’d gear steps that are closer together to help you maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or speed.

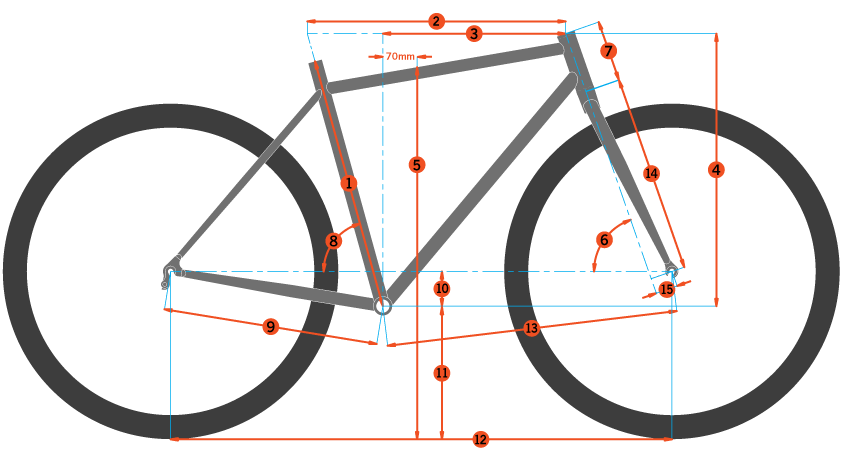

| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
|---|---|---|---|---|---|---|---|
| 1 | ST Length | 410 | 410 | 455 | 455 | 500 | 535 |
| 2 | TT Length | 530 | 544 | 559 | 576 | 593 | 613 |
| 3 | Reach | 380 | 385 | 390 | 395 | 400 | 405 |
| 4 | Stack | 560 | 575 | 590 | 610 | 630 | 660 |
| 5 | Standover | 716 | 721 | 758 | 768 | 806 | 840 |
| 6 | HT Angle | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| 7 | HT Length | 115 | 131 | 147 | 172 | 193 | 225 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 75 | 75 | 75 | 72 | 72 | 72 |
| 11 | BB Height | 285 | 285 | 285 | 288 | 288 | 288 |
| 12 | Wheelbase | 1059 | 1069 | 1080 | 1094 | 1106 | 1123 |
| 13 | Front Center | 625 | 635 | 646 | 659 | 671 | 687 |
| 14 | Fork Length | 420 | 420 | 420 | 420 | 420 | 420 |
| 15 | Fork Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Harbor Grey w/ Plum & Bloodstone Decals / 54cm / 700c | 841073152353 | B36ORCD54 | 210000009073 |
