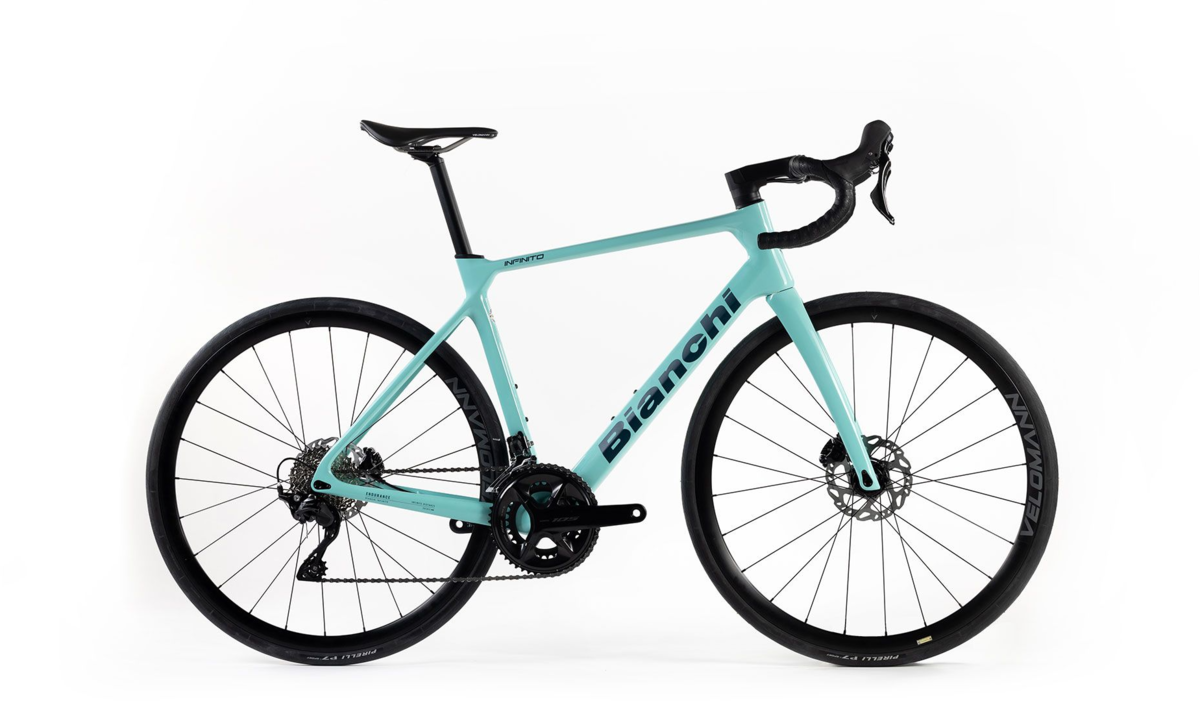

Bianchi Infinito ICR
$5,500.00
Details
A pure endurance machine, the Infinito answers a need among cyclist for a fast bike you feel like you could ride forever.
| SIZE | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
|---|---|---|---|---|---|---|---|
| A | 420 | 450 | 480 | 500 | 520 | 540 | 560 |
| B1 | 515 | 525 | 535 | 550 | 560 | 575 | 585 |
| C | 415 | 415 | 415 | 415 | 415 | 420 | 420 |
| D | 68 | 68 | 68 | 68 | 68 | 68 | 68 |
| E | 120 | 135 | 150 | 165 | 165 | 195 | 210 |
| F | 580 | 583 | 588 | 593 | 593 | 608 | 612 |
| G | 74,5° | 74,5° | 74° | 73,5° | 73,5° | 73° | 72,5° |
| G1 | 70,5° | 71,5° | 71° | 72° | 72,5° | 72,5° | 72,5° |
| H | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| I | 375 | 375 | 375 | 375 | 375 | 375 | 375 |
| X | 371 | 375 | 377 | 381 | 386 | 391 | 392 |
| Y | 521 | 539 | 553 | 569 | 585 | 600 | 614 |
| W | 986 | 988 | 993 | 999 | 1004 | 1019 | 1023 |
Specs
| Frame | INFINITO carbon ICR - 1.5"- 1.5", Disc Brake, Mechanical/Electronic Di2, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle sizes 47-50-53-55-57-59-61cm |
|---|---|
| Fork | Full Carbon ICR - 28"- 300mm - 1.5" , dropout 12 x 100mm thru axle |
| Wheels | Velomann Palladium, 33mm profile, 700x21c, 24h, HG11 body, spoke pattern 2 to 1, tubeless-ready, set 1450 gr, sealed cartridge bearings |
| Tires | Pirelli Cinturato™ Velo TLR 32mm (622-32), ArmourTech |
| Bottom Bracket | Shimano KSMBB7241B pressfit |
| Crankset | Ultegra 12sp FC-R8100, hollowtech 2, for rear 12- speed, 170- 172,5-175mm, 50x34T Crank Length:170mm-47~54cm, 172.5mm-55~59cm, 175mm-61cm |
| Shifters | Ultegra Di2 hydraulic disc brake for road ST-R8170(L), ST-R8170 (R) |
| Front Derailleur | Ultegra Di2 12sp FD-R8150, Ultegra Di2, brazed-on type |
| Rear Derailleur | Ultegra Di2 12sp RD-R8150, 12-speed, max 34T |
| Cassette/Freewheel | Ultegra 12sp 11-34T CS-R8100,Ultegra 12sp, 11-12-13-14-15-17-19-21-24- 27-30-34T |
| Chain | Shimano CN-M8100, 12- speed |
| Brakes | Shimano BR-R8170 Hydraulic disc brake included in the shifter |
| Rotors | Shimano RT-CL800, 160mm front rear |
| Handlebars | Velomann Aero Compact handlebar full ICR, alloy diam. 31,8mm, reach 74mm, drop 116mm Size: 400mm-47~53cm, 420mm-55~57cm, 440-59"61cm |
| Tape/Grips | Bianchi Arrow premium tape, 2.5mm thickness, full black |
| Stem | Velomann, AL6061, fully internal cable routing stem, compatible with Acros AICR system Ext: 90mm (47), 100mm(50/53), 110mm(55/57), 120mm(59/61) |
| Headset | Acros/FSA for ICR cable routing |
| Seatpost | Velomann, custom D-shape, alloy shaft 2014, head alloy 6061, Setback 25mm L350mm =47>57cm; L380mm= 59>61cm |
| Pedals | Sold Separately |
| Saddle | Velomann Mitora Lite 139 saddle, 139x250mm carbon rail 7x9,1mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| 2K: Celeste Glossy / 55cm / 700c | 08059919040814 | YTB4DU552K | 210000009032 |
